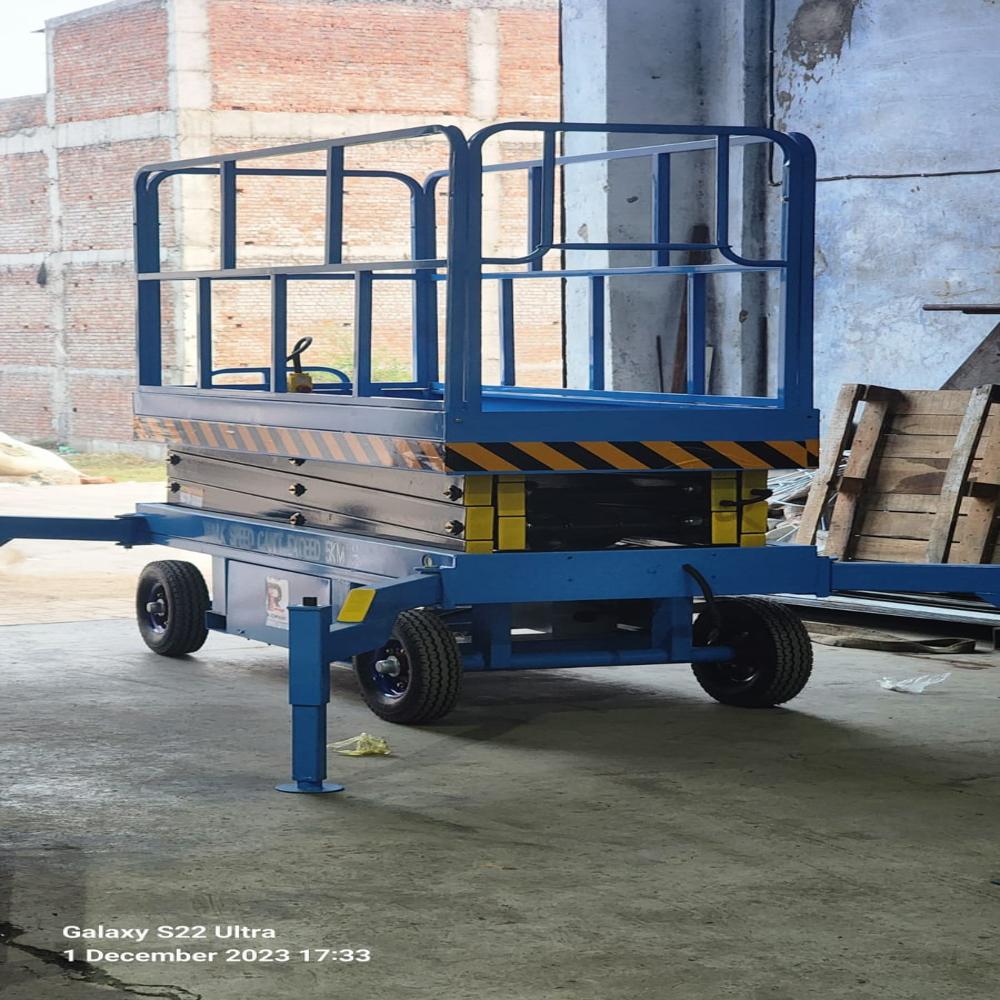

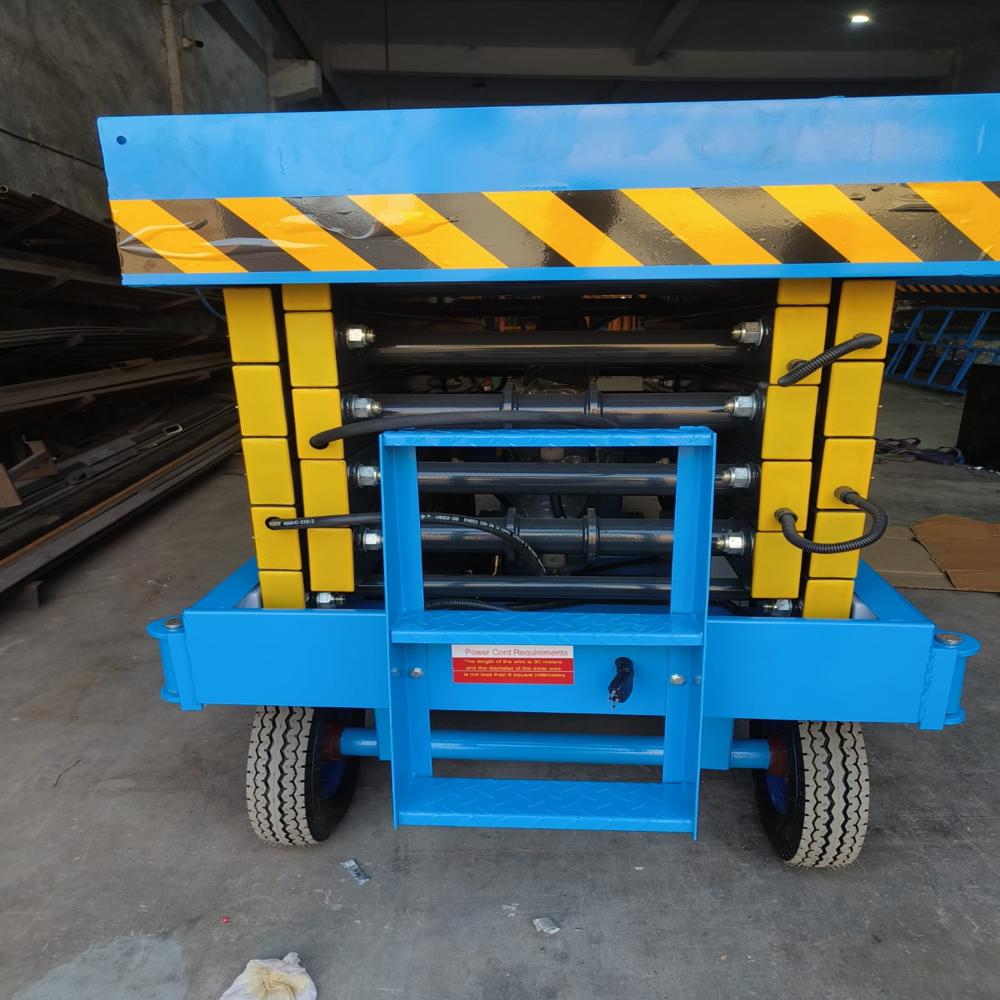

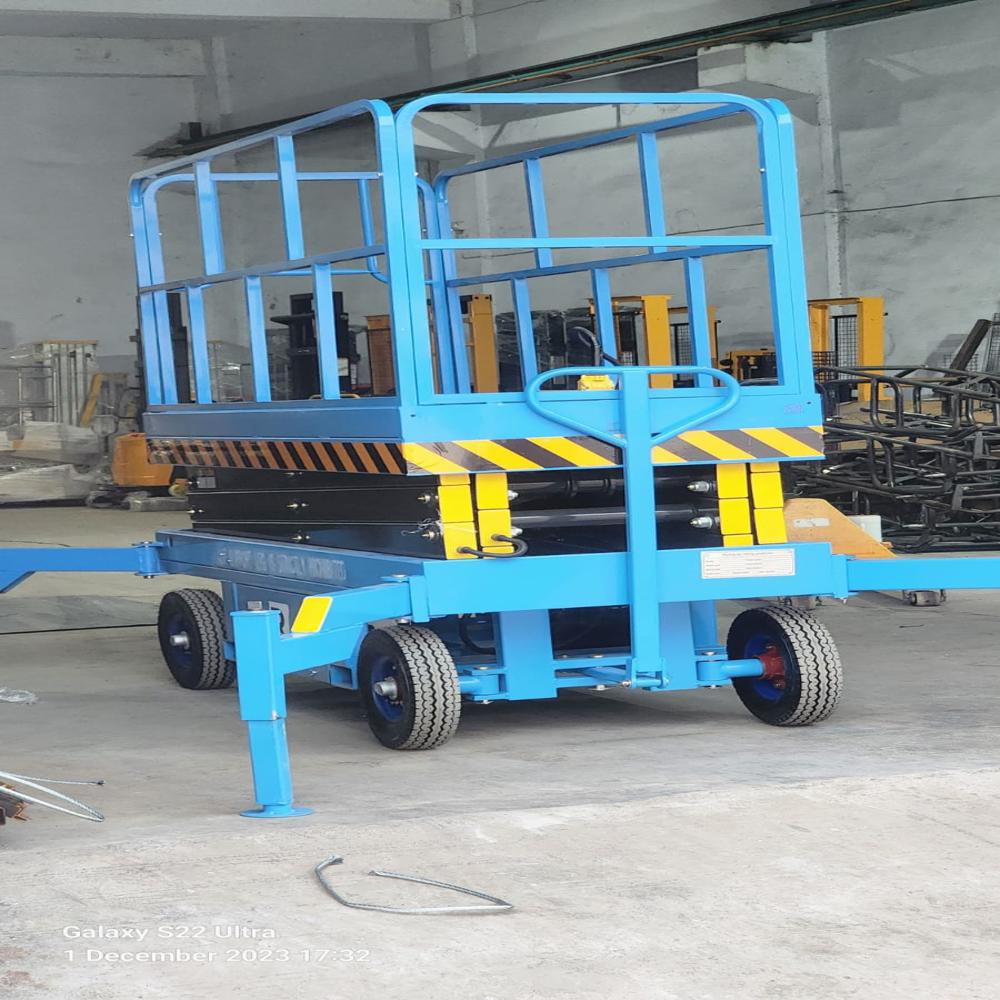

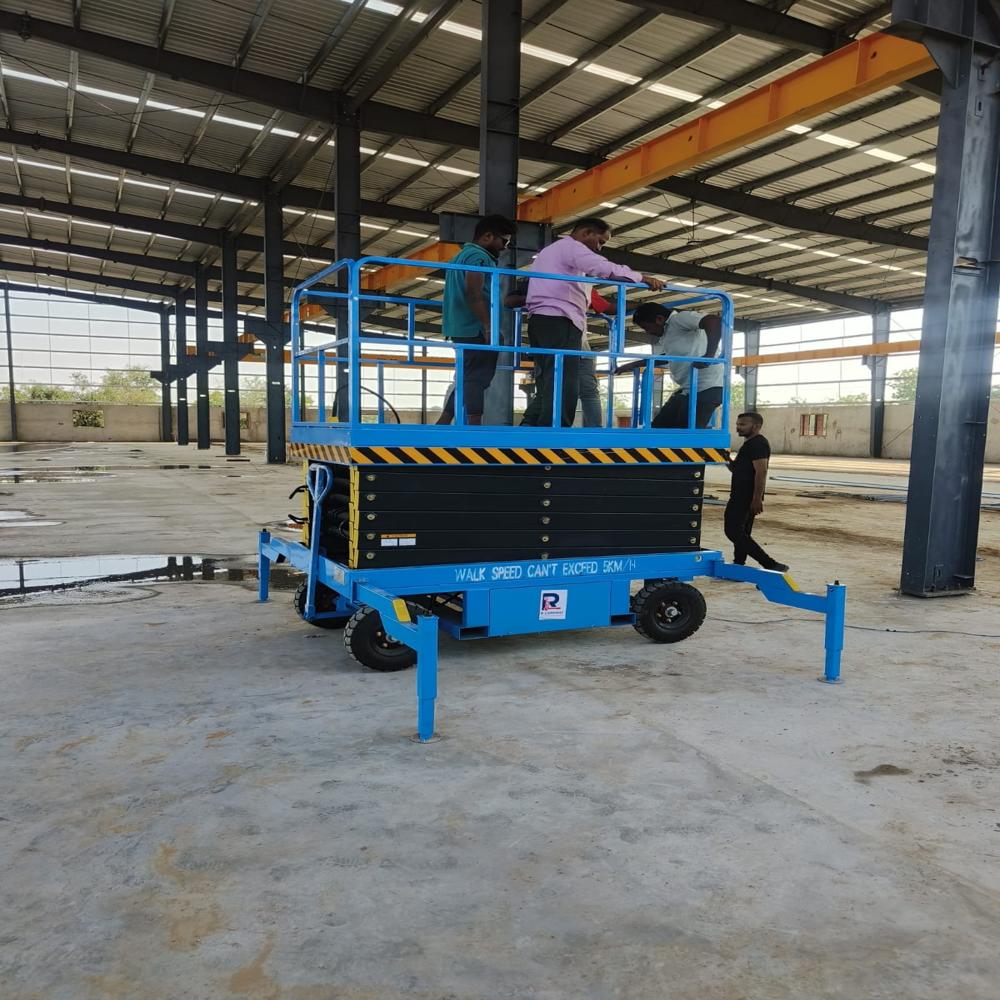

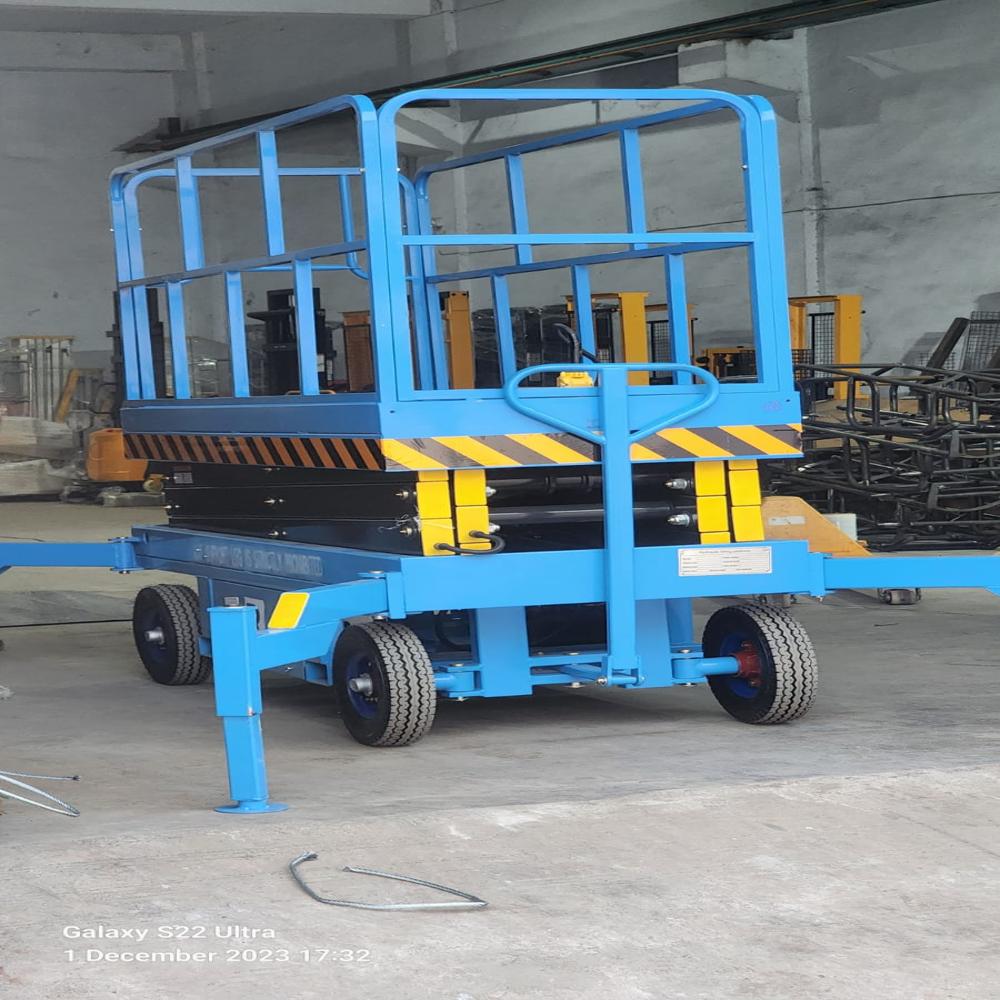

Manually Towable Scissor Lift

Name: Manually Towable Scissor Lift
Brand: RUDRA EQUIPMENT
Price: 345000.0 INR
Availability: InStock

Price 345000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Manually Towable Scissor Lift Specification

Lifting Speed
Approx. 50 mm/stroke (manual pump) km/m

Rack Capacity
350 kg Kilogram(Kg)

Handle Type
Ergonomic tow handle

Forklift
No

Features
Emergency lowering valve, non-slip platform, overload protection

Motor Type
Not Applicable (manual)

Control System
Manual hydraulic control

Equipment Type
Scissor Lift

Rotation Type
Fixed platform, no rotation

Condition
New

Lifting Capacity
300 kg to 1000 kg (customizable) Kilograms (kg)

Max. Lifting Load
Upto 1000 kg Kilograms (kg)

Max. Lifting Height
5000 mm (customizable options available) Millimeter (mm)

Power Source
Other

Power Consumption
None (manual operation) Watt (W)

Voltage
No electrical power required (manual) Horsepower (HP)

Feature
Heavy-duty construction, stable platform, easy maneuverability

Attributes
Other

Operation
Hand leverage (hydraulic jack type)

Number of Wheels
4 (2 fixed, 2 swivel with brakes)

Mobility
Tow-bar enabled manual relocation

Paint Type
Industrial grade anti-corrosive coating

Material
Powder-coated mild steel (MS)

Platform Size
1200 mm x 800 mm (customizable on request)

Safety Features
Over-center locking, toe guards, safety rails

Application
Maintenance, installation, warehouse, workshop, electrical fittings

Lift Mechanism
Hydraulic scissor action

Minimum Platform Height
900 mm

Manually Towable Scissor Lift Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About Manually Towable Scissor Lift

Model	RE/118-6MTR-500 KG	RE-118/8 MTR-500 KG	RE-118/10MTR-500 KG
Platform height	6m	8m	10m
Working height	8m	10m	12m
Load capacity	500kg	500kg	500kg
Platform size	21068301100mm	21069301100mm	210012301100mm
Overall size	247511501708mm	225010601380mm	225013501530mm
Total weight	1000kg (N.W)	1140kg (N.W)	1360 kg (N.W)
Platform	3mm non-slip tread plate	3mm non-slip tread plate	3mm non-slip tread plate
Scissor Strut	Rectangular tube: 120603.75mm material Q500 high-strength steel	Rectangular tube: 120603.75mm material Q500 high-strength steel	Rectangular tube: 120603.75mm material Q500 high-strength steel
Chassis	Rectangular tube:100503.75mm	Rectangular tube:100503.75mm	Rectangular tube:100503.75mm
Cylinder	HSG80/45 *4pc; Sealing ring, durable and non-leakage.	HSG80/45 *4pc; Sealing ring, durable and non-leakage.	HSG70/45 *4pc; Sealing ring, durable and non-leakage.
Hydraulic tubing	2-10-43MPa /Double-layer steel mesh high pressure oil pipe.	2-10-43MPa /Double-layer steel mesh high pressure oil pipe.	2-10-43MPa /Double-layer steel mesh high pressure oil pipe.
Power and voltage	1.1kW/380V(220V)	1.5kW/380V(220V)	2.2kw/380v/50hz
Tire	700-9 pneumatic tires 4	700-9 pneumatic tires 4	185/75R14C pneumatic tires*2
Outrigger	100503.75mm Rectangular tube	100503.75mm Rectangular tube	100503.75mm Rectangular tube
Control form	Up and down control. Each operating part uses 36V safety control voltage	Up and down control. Each operating part uses 36V safety control voltage	Up and down control. Each operating part uses 36V safety control voltage
Limit switch	Renmin brand	Renmin	Renmin
Shaft pin	45# is made of round steel, boiled black.	45# is made of round steel, boiled black.	45# is made of round steel, boiled black.
Hydraulic oil	32# Great Wall anti-wear hydraulic oil	32# Great Wall anti-wear hydraulic oil	46# Great Wall anti-wear hydraulic oil
Lifting speed	4-6m/min, adjustable descent speed	4-6m/min, adjustable descent speed	4-6m/min, adjustable descent speed
PRICE	3,45,000 PLUS GST	4,10,000 PLUS GST	4,95,000 PLUS GST

Discover the exceptional Manually Towable Scissor Lift, built with premium, powder-coated mild steel for superior durability and safety. Ideal for maintenance, installation, workshop, and warehouse applications, this in-demand equipment features a stable, customizable platform (1200 mm x 800 mm), with lifting capacities from 300 kg to 1000 kg-all at a valuable discount when you buy online. Its hydraulic scissor mechanism ensures smooth elevation without any power source, making it a superlative choice for facilities prioritizing mobility, safety, and manual operation efficiency.

Key Features, Applications, and Material Advantages

This scissor lift stands out due to its heavy-duty construction, industrial-grade anti-corrosive finish, and safety-focused features like toe guards, over-center locking, and robust safety rails. Designed for manual operation without electricity, it's perfectly suited for maintenance, installations, electrical fittings, workshops, and warehouses. The powder-coated mild steel ensures long-lasting value even in harsh environments, while oversized polyurethane wheels and an ergonomic tow handle provide easy maneuverability and relocation.

FOB Port, Certifications, and Sample Policy Information

Our Manually Towable Scissor Lift can be shipped efficiently from major Indian FOB ports, with options for express shipping to ensure faster transportation and delivery. All products adhere to leading industry certifications for safety and manufacturing quality, guaranteeing reliable usage. Sample policies are available upon request to assist in ensuring product suitability before commitment, making procurement seamless for exporters, manufacturers, service providers, and suppliers alike.

FAQ's of Manually Towable Scissor Lift:

Q: How does the manually towable scissor lift operate without electricity?

A: The scissor lift utilizes a hydraulic hand pump mechanism. By operating the ergonomic handle, users manually elevate or lower the platform, eliminating the need for an electrical power source.

Q: What are the key benefits of the fixed, non-rotating platform?

A: A fixed, non-rotating platform offers exceptional stability and safety during use, particularly valuable for tasks requiring certainty of position, such as maintenance and repair operations.

Q: Where can this scissor lift be effectively used?

A: This lift is highly effective in maintenance, workshops, installations, warehouse operations, and for electrical fittings, where mobility, reach, and lifting safety are critical.

Q: What safety features does the scissor lift include?

A: Safety features include over-center locking, toe guards, safety rails, non-slip platform, overload protection, and an emergency lowering valve to enhance operational security.

Q: How does transportation and relocation of the lift work?

A: The lift is designed with a tow-bar and four heavy-duty polyurethane wheels (two fixed, two with brakes), enabling manual towing and easy relocation across various workspaces.

Q: What is the process for customizing the platform size and lifting capacity?

A: Customization requests for platform size or lifting capacity can be addressed directly during the order process, allowing adaptation to specific project or facility requirements.
