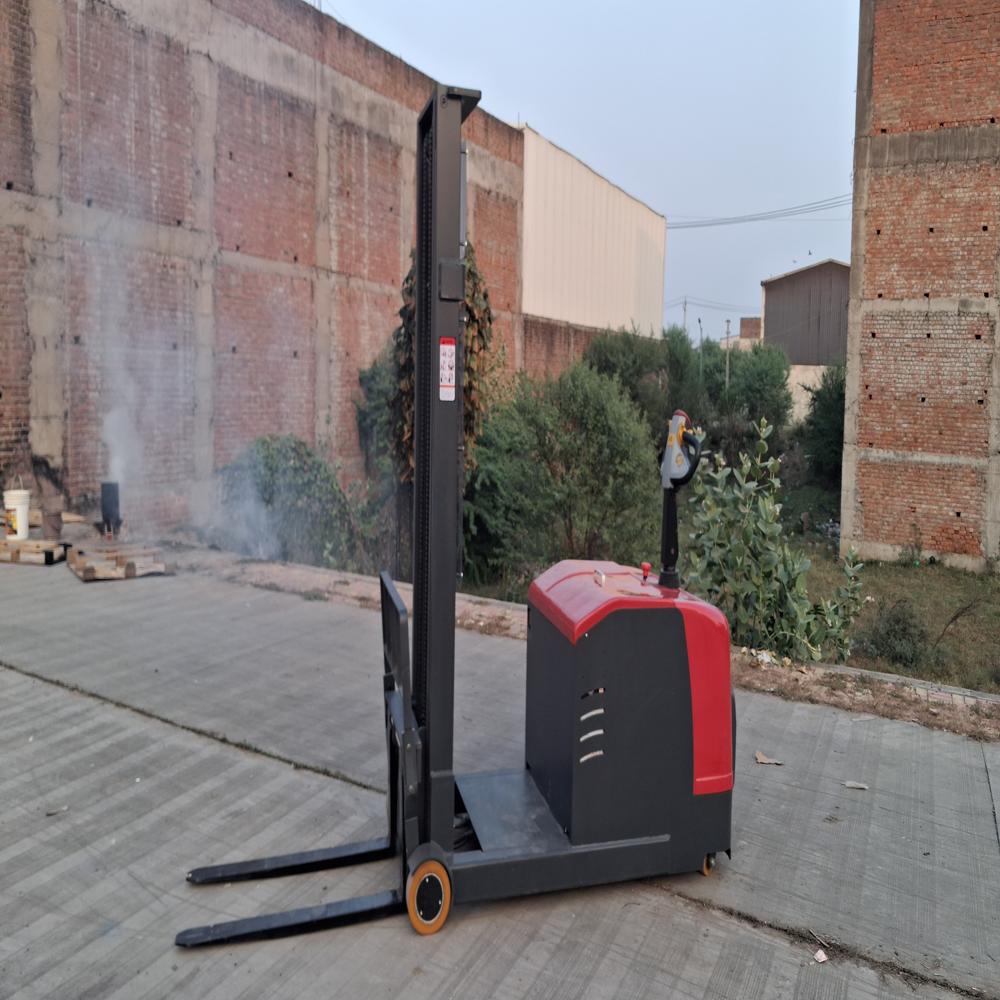

Fully Battery-Operated Counter Balance Stacker

Send Inquiry

Request To Call Back

Fully Battery-Operated Counter Balance Stacker

Name: Fully Battery-Operated Counter Balance Stacker
Brand: RUDRA EQUIPMENT
Price: 465000.00 INR
Availability: InStock

Price 465000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Fully Battery-Operated Counter Balance Stacker Specification

Temperature Range
-10C to 50C

Operating Pressure
Up to 160 bar

Connectivity Type
Non-Connected

Efficiency
High Energy Efficiency

Mounting Type
Floor Mounted, Mobile

Application
Warehouse, Production, Logistics, Cold Storage

Accessories
PU Wheels, Safety Guard, Onboard Charger, Maintenance-Free Battery

Features
Counterbalance Design; Adjustable Forks; Built-In Charger; Emergency Stop; Easy Maneuverability; Digital Battery Indicator

Flow Rate
10 L/min

Sealing Type
High-Pressure Hydraulic Seals

Body Material
High-Grade Steel

Type
Counter Balanced Stacker

Structure
Robust Welded Steel Frame

Force
Electro-Hydraulic

Speed
Travel Speed up to 4.5 km/h

Voltage
24V DC

Lift Motor Power
2.2 kW

Ground Clearance
85 mm

Rated Load Capacity
1200 kg

Control Type
Ergonomic Handle with Multi-Function Controls

Charger Input
220V, Single Phase

Wheel Material
Polyurethane

Minimum Turning Radius
1550 mm

Fork Width
560 mm (Adjustable)

Fork Length
1150 mm

Safety Features
Emergency Reverse Switch, Overload Protection, Safety Guard Rail

Service Weight
Approx. 1350 kg

Compliance
CE Certified

Model
FBS-CB1200

Noise Level
<75 dB (A)

Lifting Height
Up to 3500 mm

Braking System
Electromagnetic Brake

Drive Motor Power
0.8 kW

Fully Battery-Operated Counter Balance Stacker Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
15 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Fully Battery-Operated Counter Balance Stacker

Specification	Unit	3500 mm Model	4500 mm Model
Max Lifting Height	mm	3500	4500
Door Frame Height	mm	2300	2300
Lowered Height	mm	60	60
Operating Type		Battery Operated (6hr charge = 8hr work)
Capacity	Kg	1500 (1000 at top height)	1500 (1000 at top height)
Load Center Distance	mm	500	500
Fork Length	mm	1150	1150
Whole Length (Excl. Fork)	mm	1573	1573
Speed (Full Load / Unload)	Km/h	5 / 4	5 / 4
Lifting Speed (Full Load / Unload)	mm/s	110 / 70	110 / 70
Power Pack Details	V/Ah	12/150 (Optional)	12/150 (Optional)
Front / Rear Wheel Distance	mm	765 / 650	765 / 650
Whole Width	mm	850	850
Fork Outside Width	mm	545	545
Min Turning Radius	mm	1425	1425
Turning Method		Mechanical Turning Way
Front Wheel	mm	80 70	80 70
Lifting Motor	kW	2.2	2.2
Driving Motor	kW	1.2	1.2
Self Weight	Kg	1380	1380
Battery Voltage / Capacity	V/Ah	212 / 150	212 / 150
Paint		One coat of primer and two coats of auto-finish paint
Price	INR	4,65,000	5,10,000

New release in material handling-meet the Fully Battery-Operated Counter Balance Stacker, Model FBS-CB1200. Renowned for its supreme design, this stacker boasts a valuable lifting capacity of 1200 kg and a lifting height of up to 3500 mm, fitting various applications. Crafted from high-grade steel and equipped with advanced safety and efficiency features, it's a true bargain for production, warehouse, and logistics needs. Grab this ergonomically controlled, CE-certified unit and transform your operations with robust performance and reliability-all backed by a high-efficiency battery system.

Efficient and Versatile Stacker For Diverse Applications

The Fully Battery-Operated Counter Balance Stacker is ideal for warehouses, production lines, logistics centers, and cold storage facilities. Its robust, floor-mounted design and adjustable forks give supreme versatility for handling pallets on smooth or moderately uneven surfaces. High-grade polyurethane wheels allow for easy maneuvering, while features like a digital battery indicator, emergency stop, and onboard charger make operation secure and user-friendly. Designed for high efficiency, it seamlessly adapts to varying operational needs.

Streamlined Payment and Export Processes

Enjoy a hassle-free drop-off and purchase order process with our streamlined support. We accept advance payments, facilitating swift transportation and secure delivery. As a renowned exporter, manufacturer, service provider, and supplier based in India, we serve both main export markets such as Southeast Asia, Middle East, and other global regions, as well as major domestic markets across India. Reliable logistics and service support ensure your stacker reaches you in perfect condition, ready for immediate use.

FAQ's of Fully Battery-Operated Counter Balance Stacker:

Q: How does the battery-operated stacker enhance operational efficiency?

A: The fully battery-operated stacker streamlines workflows by allowing quick, effortless lifting and movement of heavy loads, minimizing downtime and maximizing productivity. Its energy-efficient design ensures long operational hours on a single charge.

Q: What safety features are included in this stacker model?

A: This stacker is equipped with advanced safety features, including an emergency reverse switch, overload protection, a safety guard rail, and a robust electromagnetic braking system to ensure operator safety during use.

Q: Where can the counter balance stacker be effectively used?

A: The counter balance stacker is suitable for warehouses, logistics centers, production units, and cold storage facilities, handling a wide range of material handling requirements on various floor surfaces.

Q: What is the process for purchasing and delivering this stacker?

A: To purchase the stacker, submit a purchase order. Upon receipt and advance payment, we arrange prompt drop-off and safe transportation to your desired location, ensuring all accessories and documentation are included.

Q: What are the primary benefits of the FBS-CB1200 model for users?

A: Users benefit from its high load capacity, ergonomic controls, low noise operation, maintenance-free battery, and superior maneuverability, making it a valuable asset for high-throughput environments.
