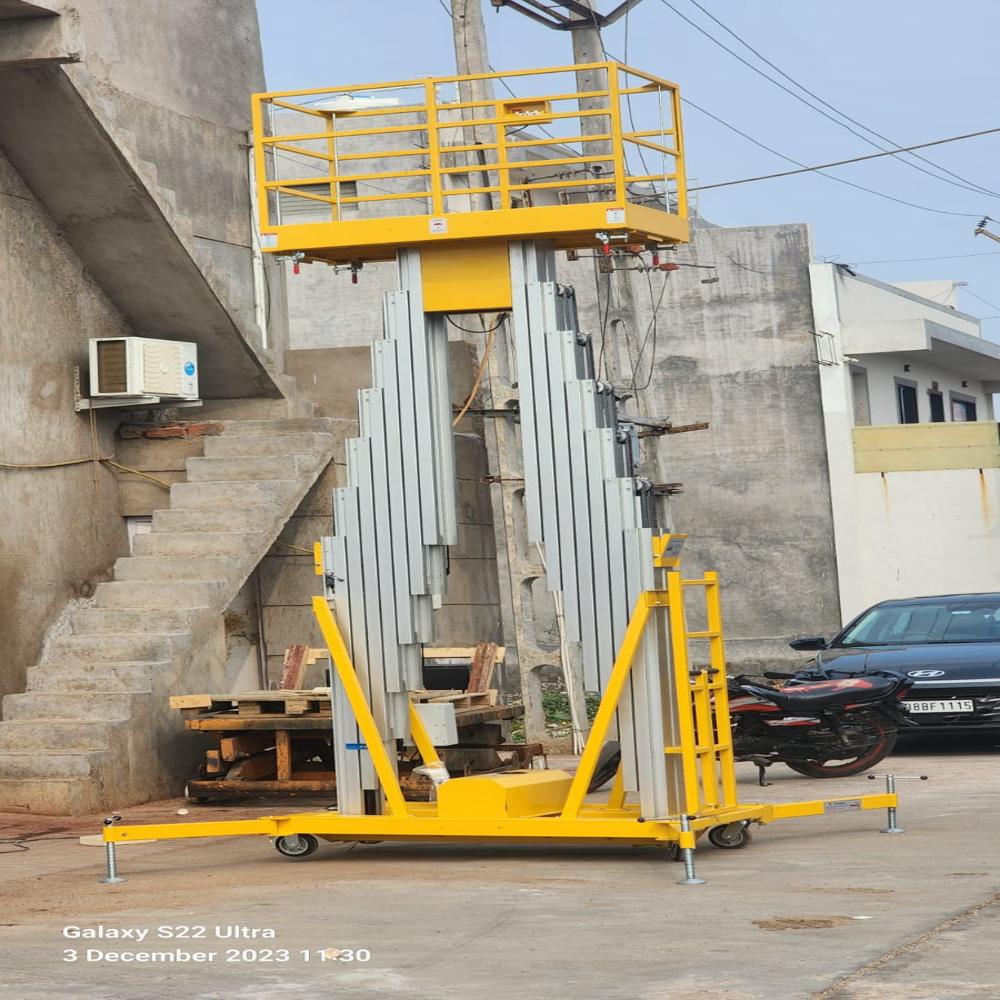

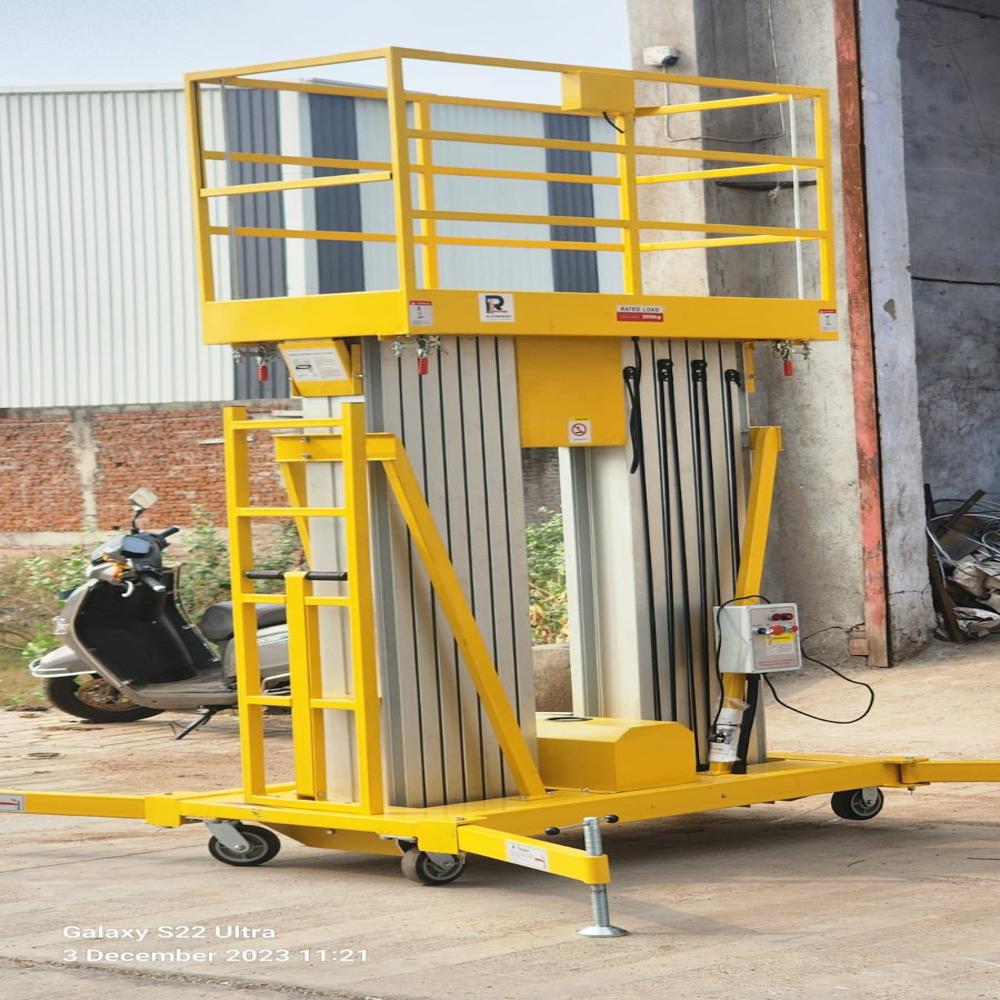

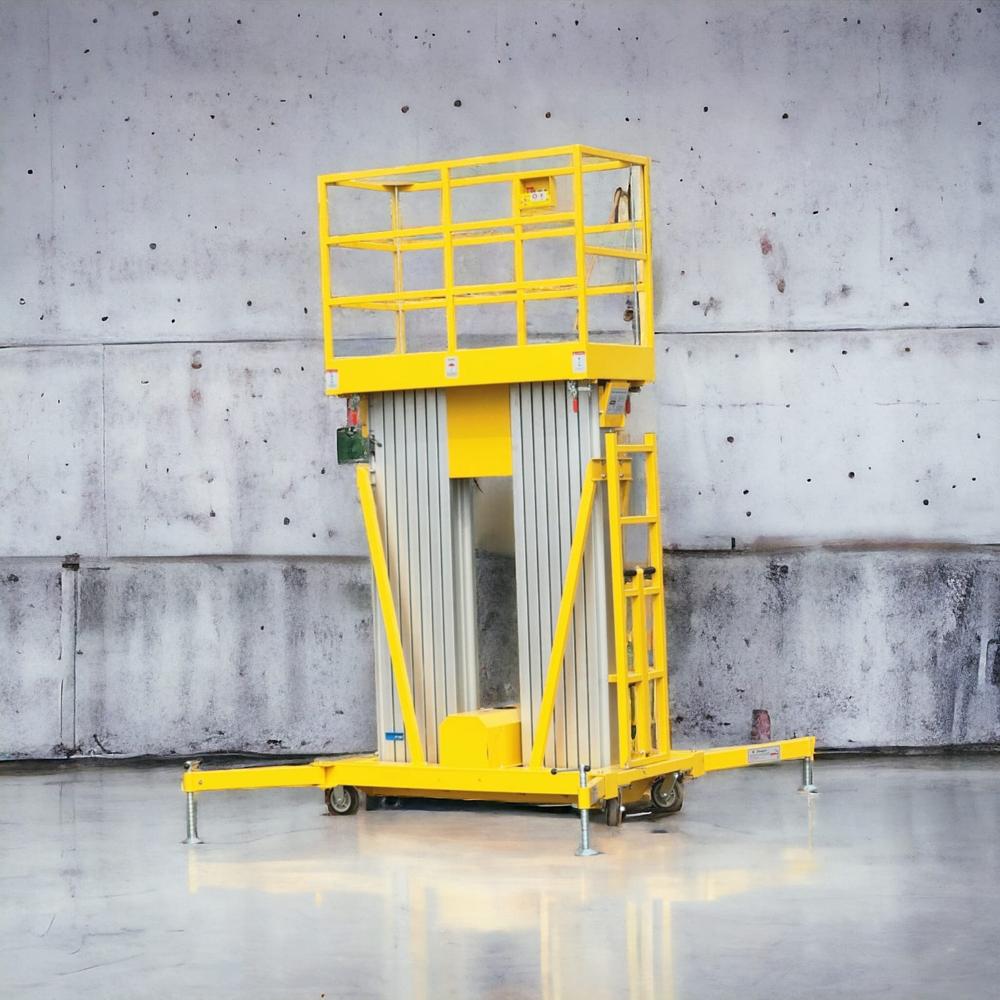

Double Mast Aerial Work Platform

Name: Double Mast Aerial Work Platform
Brand: RUDRA EQUIPMENT
Price: 410000.00 INR
Availability: InStock

Price 410000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Double Mast Aerial Work Platform Specification

Surface
Powder Coated

Material
Aluminum Alloy Platform, Steel Frame

Condition
New

Turning Radius
0 (Manual Operation)

Driver Motor
1.1 kW

Lifting Speed
5-6 m/min

Brake
Manual Brake

Installation
Free Standing, No Foundation Required

Traveling Speed
Manually Pushed

Type
Double Mast Aerial Work Platform

Application
Other

Power Source
AC 220V/50Hz or Battery

Loading Capacity
200 kg

Lifting Time
70-90 seconds

Lifting Capacity
200 kg

Lifting Height
6-14 meters

Dimension (L*W*H)
1460 x 900 x 2320 mm

Platform Size
1480 x 600 mm

Weight
600-850 kg (varies by model)

Voltage
AC 220V / Customizable as per requirement

Max Working Height
Up to 16 meters

Safety Devices

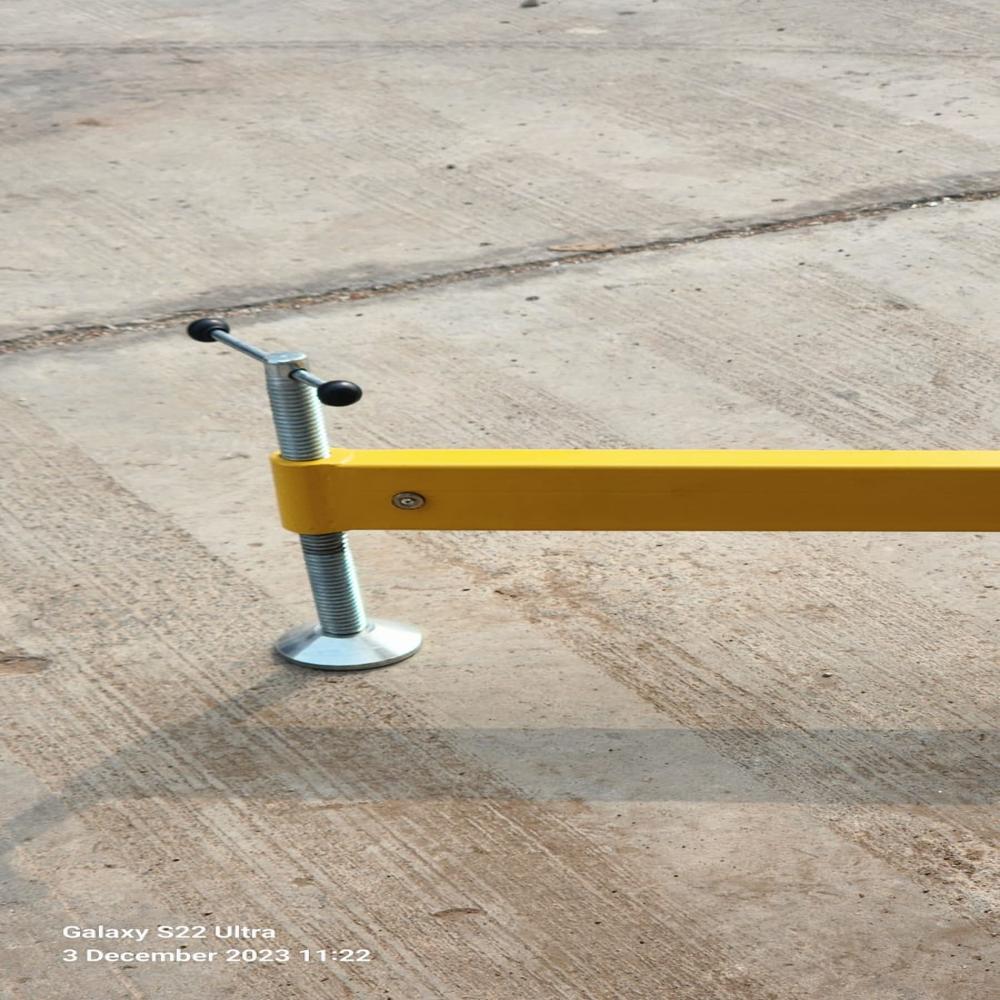

Emergency Lowering System, Leveling Jack

Wheel Type
PU Wheels for Easy Movement

Noise Level
Low Noise Operation

Usage Environment
Indoor / Outdoor, Level Ground

Mobility
Manual Push

Number of Mast
2

Control Method
Both Ground and Platform Control

Double Mast Aerial Work Platform Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
20 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Double Mast Aerial Work Platform

Product Details	Model RE-128-12MTR-200KG	Model RE-128-10MTR-200 KG
Aluminum alloy mast quantity	Double mast	Double mast
Platform height (m)	12	10
Working height (m)	14	12
Load capacity (Kg)	200kg	200kg
Platform size (mm)	1320 * 600 * 1100	1320 * 600 * 1100
Outriggers Span Distance (mm)	2420 * 2270mm	2190 * 2090mm
Overall size (m)	1.66 * 0.97 * 1.98 (ABC)	1.5 * 0.9 * 2.04 (ABC)
Power	AC	AC
Lifting motor power (Kw)	1.1	1.1
Voltage (V/Hz)	220/50	220/50
Up/down speed (m/min)	35	35
Platform standing area materials	Table top is made of 3mm patterned steel plate (with anti-slip function) and iron guardrail	Table top is made of 3mm patterned steel plate (with anti-slip function) and iron guardrail
Aluminum telescopic rod length (m)	1.55	1.55
Aluminum Arm cross section (mm)	200 * 95 * 6.5	200 * 95 * 6.5
Base material	Adopt 4mm open plate folded edge	Adopt 4mm open plate folded edge
Outriggers (mm)	40 * 80 rectangular square pipe (Shanghai Baosteel brand)	40 * 80 rectangular square pipe (Shanghai Baosteel brand)
Electrical box	Electronic integrated circuit board integrated box, platform with two wireless remote control	Electronic integrated circuit board integrated box, platform with two wireless remote control
Up/down control button	Schneider Brand	Schneider Brand
Travel Switch	Zhengtai brand	Zhengtai brand
Hydraulic pumping station	Suzhou haipu brand	Suzhou haipu brand
Cylinder	1 outer diameter 50mm, 1 inner diameter 40mm, driven by electric hydraulic pump to adjust the lift up	1 outer diameter 50mm, 1 inner diameter 40mm, driven by electric hydraulic pump to adjust the lift up
Sealing Ring	Taiwan dingji brand	Taiwan dingji brand
Hydraulic unit	Suzhou haipu brand hydraulic power unit with overload protection	Suzhou haipu brand hydraulic power unit with overload protection
Hydraulic oil	32# anti-wear hydraulic oil in winter, 46# anti-wear hydraulic oil in summer (China Great Wall brand)	32# anti-wear hydraulic oil in winter, 46# anti-wear hydraulic oil in summer (China Great Wall brand)
Tires	Polyurethane wheels 4pcs, 6 inch (15mm diameter)	Polyurethane wheels 4pcs, 6 inches (15mm diameter)
Total weight	640kg	540kg
Price	4,60,000 PLUS GST	4,10,000 PLUS GST

Presenting the Valiant Double Mast Aerial Work Platform-now at a fresh, reduced price! This venerable piece of equipment boasts an imposing platform size of 1480 x 600 mm and reaches a maximum working height up to 16 meters. Engineered with dual masts and reliable PU wheels, it promises smooth maneuverability. Enjoy both ground and platform controls, a robust aluminum alloy platform, safety devices like an emergency lowering system, and a quiet operation. Grab yours for impressive performance in diverse indoor and outdoor maintenance, cleaning, and installation tasks.

Versatile Applications and Superior Advantages

Double Mast Aerial Work Platforms offer a powder-coated, durable surface suitable for a range of applications on level ground, both indoors and outdoors. Their competitive advantages include a strong steel frame, low noise operation, and a manual push mobility system. The imposing lift accommodates up to 200 kg, providing safe access for maintenance, cleaning, and installation at heights. Widely suitable for warehouses, factories, malls, and large event venues, their robust construction ensures long-term reliability and peace of mind.

Domestic Availability, Supply Capacity & Sample Exchange Options

Serving the main domestic market across India, our Double Mast Aerial Work Platform is available with express shipping and flexible logistics tailored to client needs. With an abundant supply ability, manufacturers, exporters, and suppliers can readily exchange or deliver these platforms as required. Sample policies are client-centric-potential partners can request product samples, ensuring confidence before larger orders. Our logistics network guarantees timely, seamless exchange and swift supply to strengthen project workflows nationwide.

FAQ's of Double Mast Aerial Work Platform:

Q: How does the Double Mast Aerial Work Platform ensure user safety?

A: The platform integrates essential safety devices such as an emergency lowering system, leveling jacks, and manual brakes, ensuring stable and secure operation even at maximum working heights.

Q: What surfaces and environments is this platform best suited for?

A: This equipment is ideal for indoor and outdoor environments with level ground. Its powder-coated surface and robust mobility allow for smooth operation across warehouses, malls, factories, and event venues.

Q: Where can I request a sample or inquire about express shipping options?

A: You can contact our supplier or export team in India to arrange for product samples and discuss express shipping tailored to your project timeline and logistics preferences.

Q: What is the process for customizing the voltage or other specifications?

A: Clients may specify required voltage or features upon ordering. Our team will coordinate to ensure the platform is configured according to unique operational requirements.

Q: What are the benefits of dual control (ground and platform) operations?

A: Dual control methods enhance operational flexibility, allowing users to operate the lift safely from both the platform and the ground, which is valuable during maintenance or installation processes.
